VIDA Aluminium Frameless Folding Door System

Redefine the patio door.

The VIDA aluminium frameless folding door system delivers proven structural performance and weather resistance for contemporary architectural projects. Manufactured locally by Van Acht to stringent quality standards, this system provides architects and specifiers with a cost-effective solution that meets both aesthetic and functional requirements.

Specifications

Technical Excellence & Compliance
Constructed from high-grade aluminium profiles with precision-engineered hardware, the VIDA system achieves superior structural integrity and operational durability. AAAMSA certification confirms compliance with SANS 613 performance standards, qualifying the system for use as a primary weather barrier in commercial and residential applications.

Installation Efficiency
The system's modular design enables rapid installation by qualified contractors, with streamlined fixing methods requiring standard tools once structural framing is complete. Pre-engineered components and simplified alignment procedures reduce on-site labor time and installation complexity.

Architectural Integration
The VIDA system features enhanced profile dimensions that provide increased structural capacity while maintaining clean sightlines. The robust frame geometry supports larger glazed areas and delivers reliable long-term performance across diverse environmental conditions, making it suitable for specification in demanding architectural applications where both structural performance and visual impact are critical design considerations.

BIM Objects

Download the professional BIM objects for Van Acht's Vida Aluminium Frameless Folding Doors.

Available for Revit.

VIDA Door Frame Configurations -

Panel Width Standard: 600mm for ALL panels

Standard Height Series

Frame Height: 2098mm
Glass Specification: 8mm Toughened Glass
Applications: Residential and standard commercial openings

Extra Height Series

Frame Height: 2383mm
Glass Specification: 10mm Toughened Glass
Applications: Premium residential and high-end commercial projects

Extra Leaf Options

Additional panel configurations available:

Note: Can be combined with standard configurations for custom opening solutions

Technical Specifications
(All Configurations)

• Material: High-grade aluminium profiles
• Hardware: Custom-engineered hinges and track system
• Sealing: Woolpile, Qlon seal, self-adhering foam, bubble seals
• Operating Force: 48N (SANS 613 compliant)
• Air Infiltration: 0.67 ℓ/sec/m² (max 2.0 ℓ/sec/m²)
• Water Penetration: No leaks at 1,000 Pa test pressure
• Structural Load: No deformation up to 1,500 Pa

Standard Finishes

• Textured Black (standard)
• Charcoal (standard)
• Bronze (standard)
• Custom colours available on request

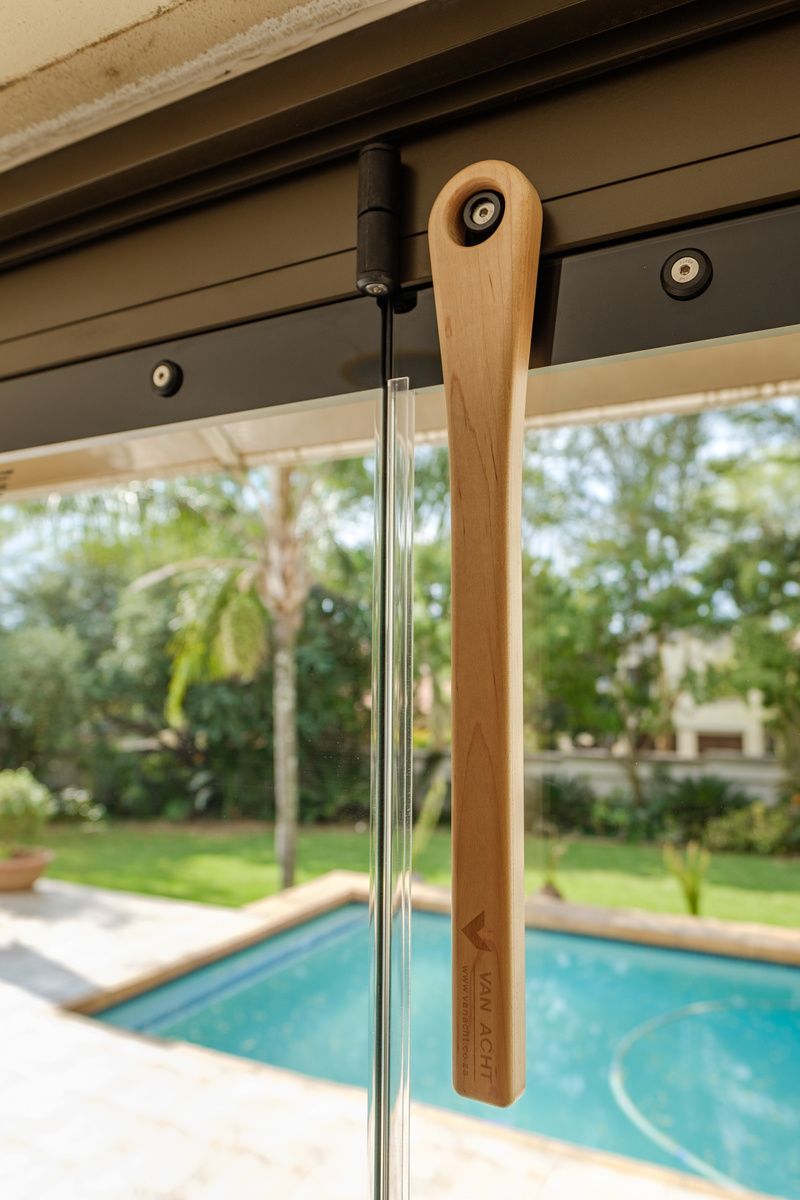

Frame your view with the new VIDA Aluminium Frameless door range from Van Acht. Crafted with high-quality aluminium and expertly engineered, this frameless door boasts incredible strength and durability. Tested and approved by AAAMSA, this door can be used as a primary weather barrier. Qualified installers will find this system quick and easy to install, requiring little more than an Allen key set once the frame is fitted.
